DRU swing door

  • DRU swing door
  • DRU swing door
DRU swing doorDRU swing door

DRU swing door

  • Max. door weight up to 450kg
  • Opening and closing speed adjustable
  • Hold open time:0-60s adjustable
  • Opening angle:115°
  • Product description: Deren swing door supply overhead swing door and underground swing door, left hand swing door, right hand swing door operator,double swing door, automatic swing door and swing door hardware for indoor
  • INQUIRY   EMAIL

Swing door operator, also sometimes called swing door opener or automatic swing door operator.It often used to operate a swing pedestrian path to open the door automatically. In some countries, the swing door work for disabled persons.

Deren swing door supply overhead swing door and underground swing door, left hand swing door, right hand swing door operator,double swing door, automatic swing door and swing door hardware for indoor and outdoor application, with electric open and electric close function. Suitable ADA application.


Technical data

Model

DRU120A

DRU180A

DRU240A

Power supply

AC220±10%50Hz

Motor power

36V DC brushless motor

36V DC brushless motor

36V DC brushless motor

Max. torque

47Nm

70Nm

110Nm

Max. Door width

1000mm

1200mm

1500mm

Max. Door weight

100kg

150kg

250kg

Shaft distance

74mm

74mm

110mm

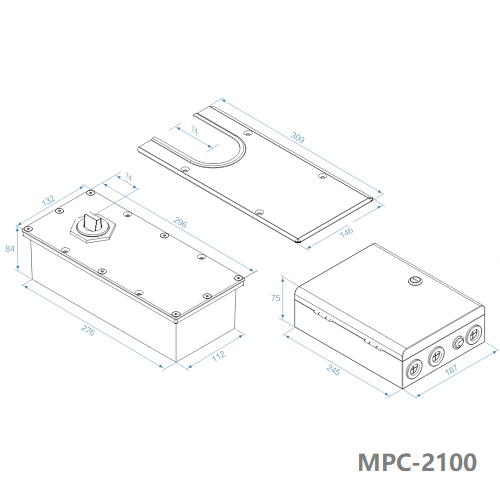

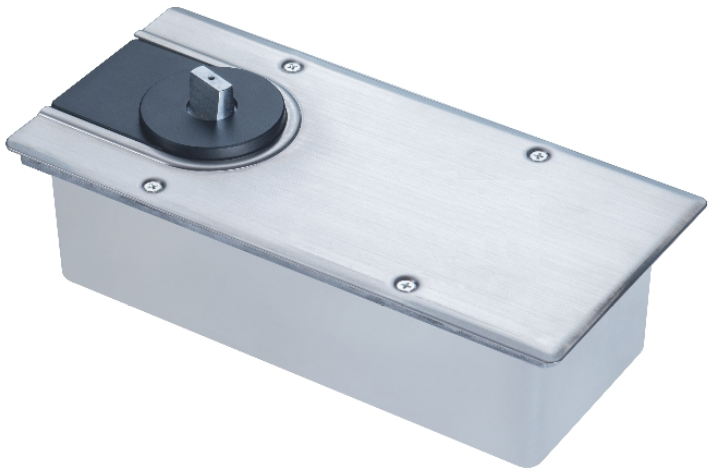

Drive unit size

296*132*84mm

296*132*84mm

358*184*108mm

Control board size

309*146*2mm

309*146*2mm

376*203*2mm

Product weight

6.5kg

6.5kg

11.5kg

Protection class

IP67

IP67

IP67

Drive unit package weight

8kg

8kg

15kg

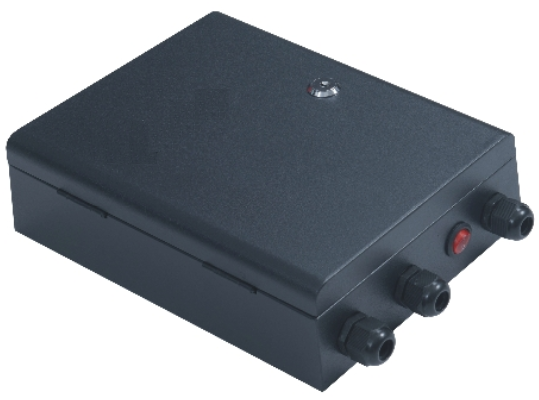

Controller dim.
