DRU swing door

  • DRU-Q Top concealed swing door
  • DRU-Q Top concealed swing door
  • DRU-Q Top concealed swing door
  • DRU-Q Top concealed swing door
  • DRU-Q Top concealed swing door
  • DRU-Q Top concealed swing door
  • DRU-Q Top concealed swing door
  • DRU-Q Top concealed swing door
DRU-Q Top concealed swing doorDRU-Q Top concealed swing doorDRU-Q Top concealed swing doorDRU-Q Top concealed swing doorDRU-Q Top concealed swing doorDRU-Q Top concealed swing doorDRU-Q Top concealed swing doorDRU-Q Top concealed swing door

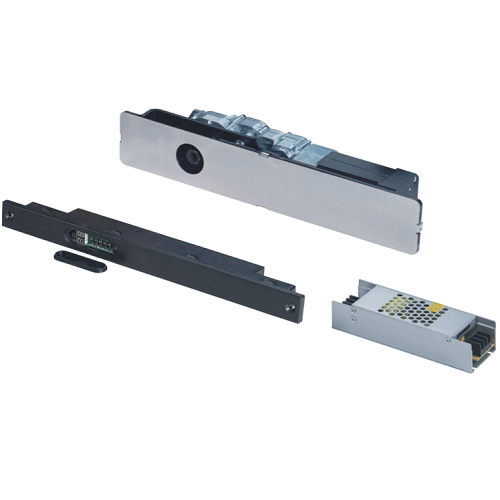

DRU-Q Top concealed swing door

  • Max. door weight up to 250kg
  • Opening and closing speed adjustable
  • Hold open time:0-60s adjustable
  • Opening angle:115°
  • Product description: Deren swing door supply overhead swing door and underground swing door, left hand swing door, right hand swing door operator,double swing door, automatic swing door and swing door hardware for indoor
  • INQUIRY   EMAIL

Swing door operator, also sometimes called swing door opener or automatic swing door operator.It often used to operate a swing pedestrian path to open the door automatically. In some countries, the swing door work for disabled persons.

Deren swing door supply overhead swing door and underground swing door, left hand swing door, right hand swing door operator,double swing door, automatic swing door and swing door hardware for indoor and outdoor application, with electric open and electric close function. Suitable ADA application.

DRU-Q series are concealed swing door closer realized unvisiable swing door operator to open and close the swing door automatically.

Technical data

Model

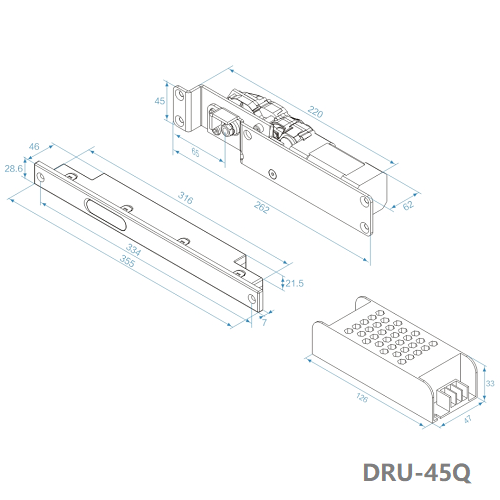

DRU-45Q

DRU-60Q

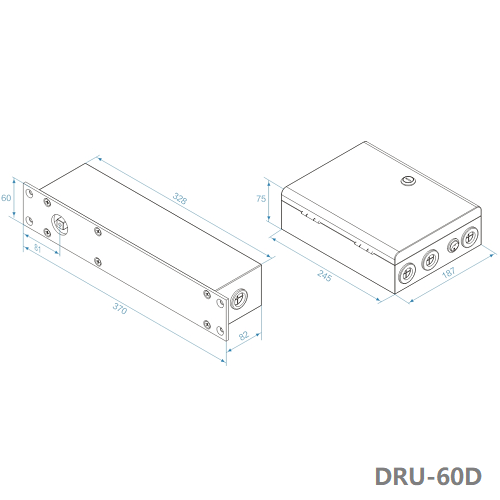

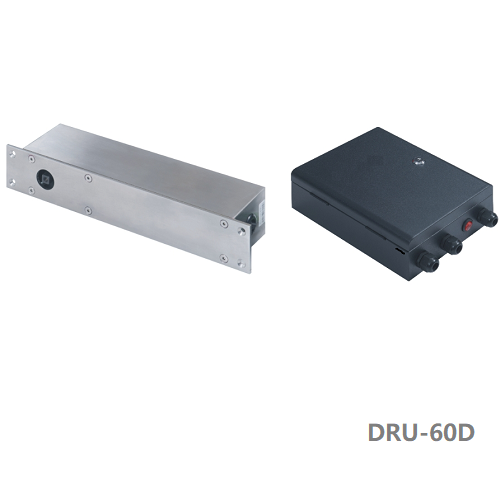

DRU-60QD

Power supply

AC220±10%50Hz

Motor power

24V DC brushless motor

36V DC brushless motor

36V DC brushless motor

Max. torque

25Nm

70Nm

150Nm

Max. Door width

9000mm

1000mm

1100mm

Max. Door weight

80kg

150kg

250kg

Shaft distance

65mm

81mm

81mm

Drive unit size

262*45*62mm

340*60*82mm

370*82*60mm

Control board size

355*46*28.6mm

210*30*80 mm

245*187*75mm

Product weight

2kg

7.5kg

7.5kg
