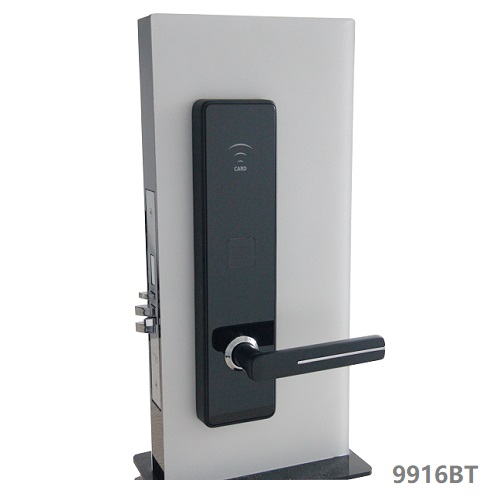

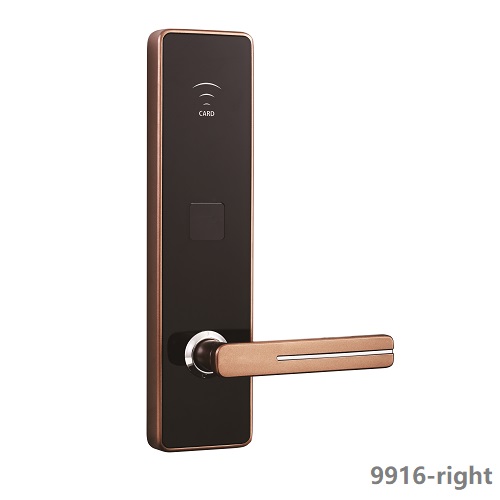

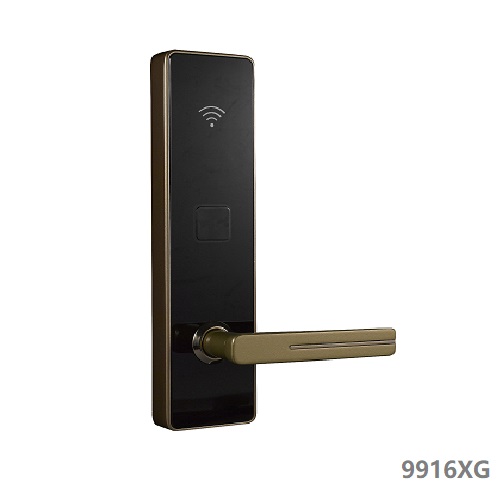

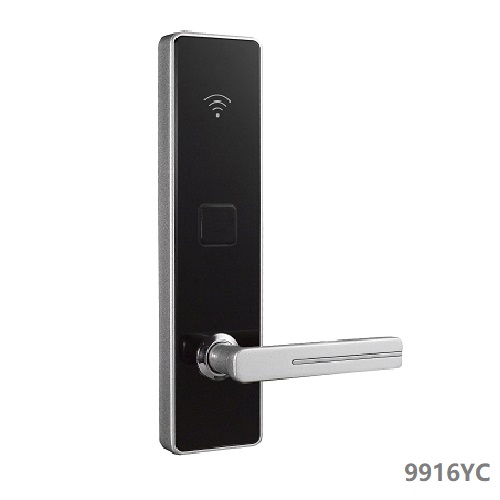

9916 Hotel Electronic Lock Series

Distinctive elegance with fancy LED effect endows, the whole hotel with modern sense. Three well-chosen colors cater to different decoration style of different hotels

Features

~ Electronic lock with Japanese “MABUCHI” motor durable for over 500,000 cycles,

~ANSI high security bolt with 3-point latch with anti-friction and anti-card mechanism in stainless steel

~Anti-manipulation handle with free rotation, avoid forcing the opening lever

~Ideal to replace old locks, it covers the brands of many models of locks on the market

~Audit system with capacity to register up to 1000 events including openings with emergency keys.

~ PCB sealed with silicon encapsulated treatment for high humidity environment

~Software available in several languages, standalone mode or centralized database

~Mechanical emergency lock

~EEPROM memory to maintain the information and configuration even if the batteries are removed

~ Use 4 standard AA batteries

Technical parameters

Material: Aluminum alloy & acrylic

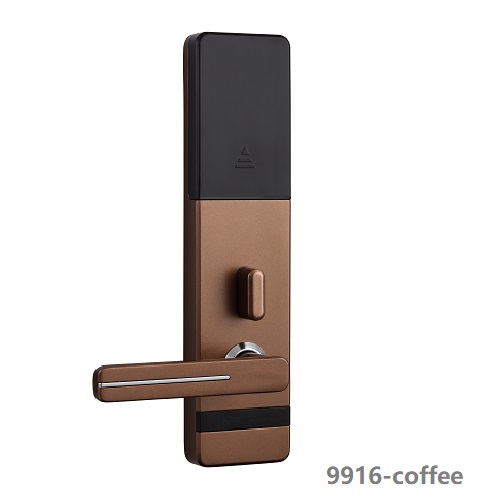

Finish: Black with silver/gold/coffee gold edge

Power supply: 4 AA alkaline batteries

Battery life: Over 15000 cycles

Static current: ＜20 μA

Dynamic current: ＜150mA

Storage humidity: 15-90%RH

Card reading distance: 0-5cm

Reading & writing time: ＜0.25s

Date keeping: over 10 years

Applicable chip: Mifare(13.56Mhz)

Emergency mechanical lock hidden behind a flap on the front, this lock allows to open the door without the need of a card in case of emergency. It will be helpful when the computer is broken or the lock in the state of misoperation. Key-alike type and key-different type are optional
